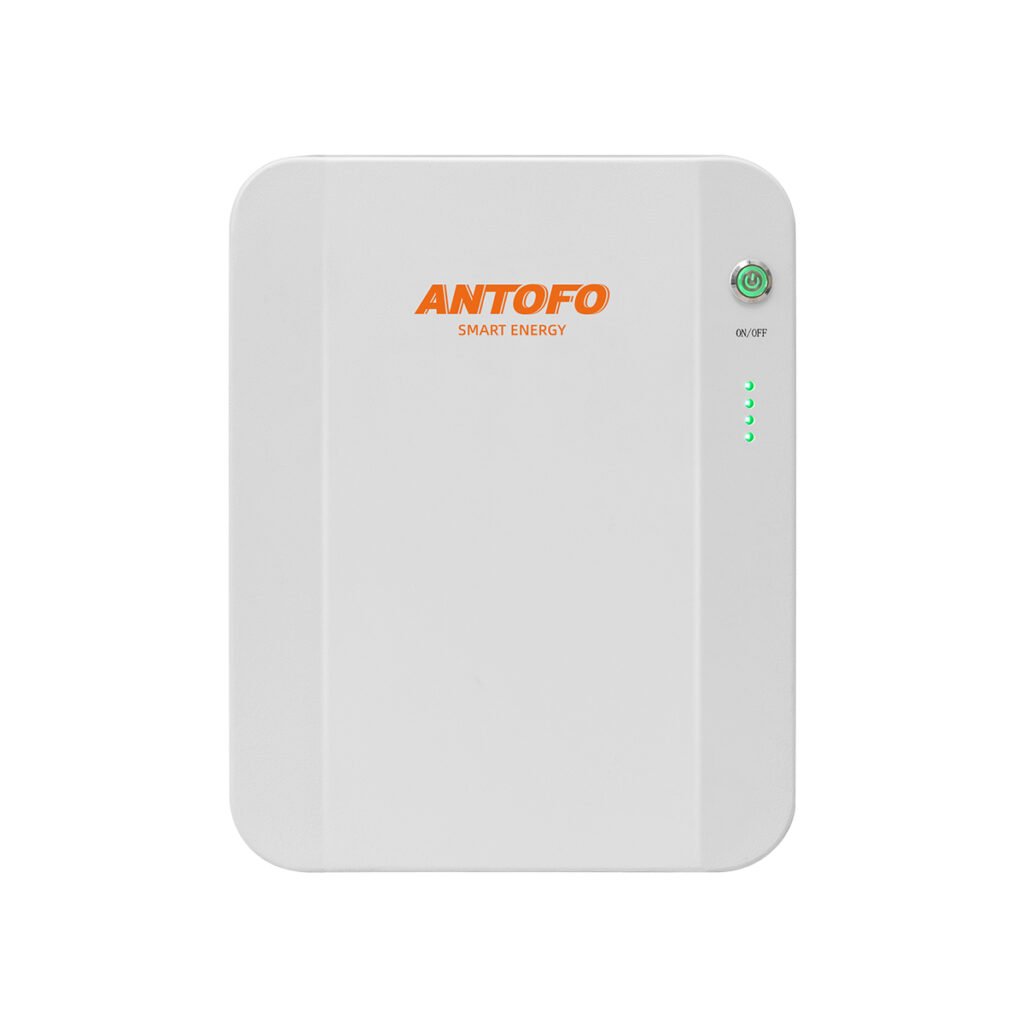

F07 SERIES Portable Household energy storage lithium battery

Model: ATF		F07-300W	F07-500W
Rated power		300W	500W
Rated capacity		1kWh
Number of output phases		Single-phase output
Battery type		Single lithium iron phosphate battery string
Grid Mode	Rated input voltage	230 Vac
	Input voltage range	176~264 Vac
	Rated input frequency	50/60 Hz
	Power factor	≥0.97 full load	≥0.95 full load
	Maximum input current	2A	2.5A
	Efficiency	85.0% max
Inverter Mode	Output voltage	230 Vac ± 5%
	Rated output frequency	50/60 Hz
	Grid-switched inverter mode	20 ms
Photovoltaic Input	Maximum solar charging power	200W(input 20V or higher)	400W
	PV voltage range	12~55 Vdc	10~50 Vdc
	PV startup voltage	≥9.1V	15V
	Maximum input current limit	10A
	Maximum open-circuit voltage	60Vdc	55Vdc
	MPPT tracking efficiency	≥99%
	PV to battery charging efficiency	90%(max)
Battery	Battery rated voltage	3.3 Vdc (discharge mode, battery voltage ≥ 2.6V starts)
	Battery voltage range	2.8-3.65 Vdc
	Charging method	Three-stage charging (lithium iron phosphate battery)
	Battery undervoltage threshold	2.8±0.1V
	Battery overvoltage threshold	3.65±0.1V
Protection Function	Inverter protection function	Input undervoltage, overvoltage, output overload, overtemperature,and short-circuit protections
Size	Heightwidthdepth	290230135mm	310230150mm
	Net weight	8.7kg	12kg
Operating Environment	Usage scenario	Indoor
	IP rating	IP21
	Noise level	< 50dB
	Humidity	5%~95% relative humidity
	Operating temperature	-0°C~60°C(power derating applies at 45°C~60°C)
	Storage temperature	-20°C～60°C
	Altitude	3000m (power derating applies above 2000m)
	Cooling method	Forced air cooling (two internal 5V/0.15A fans)
Note: The above data is for reference only and is subject to change without prior notice. For special customization requirements, please contact the equipment manufacturer.
