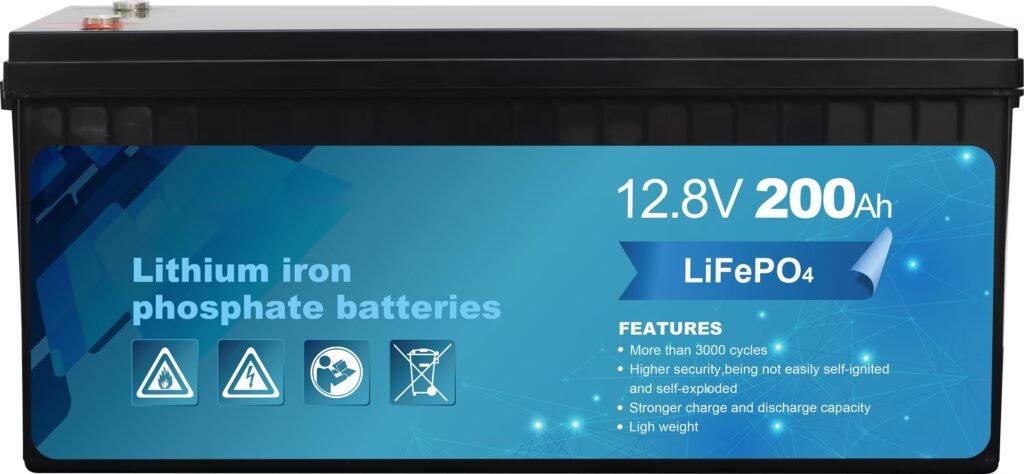

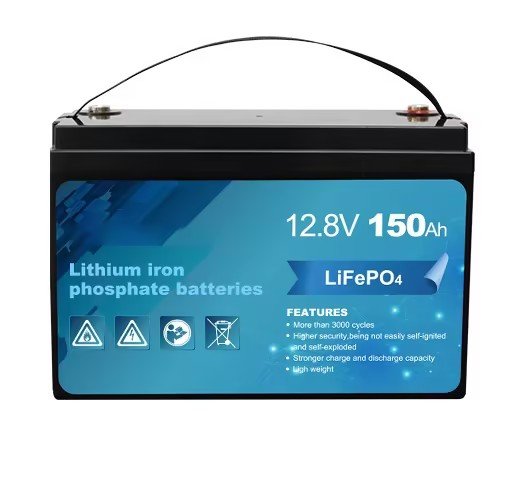

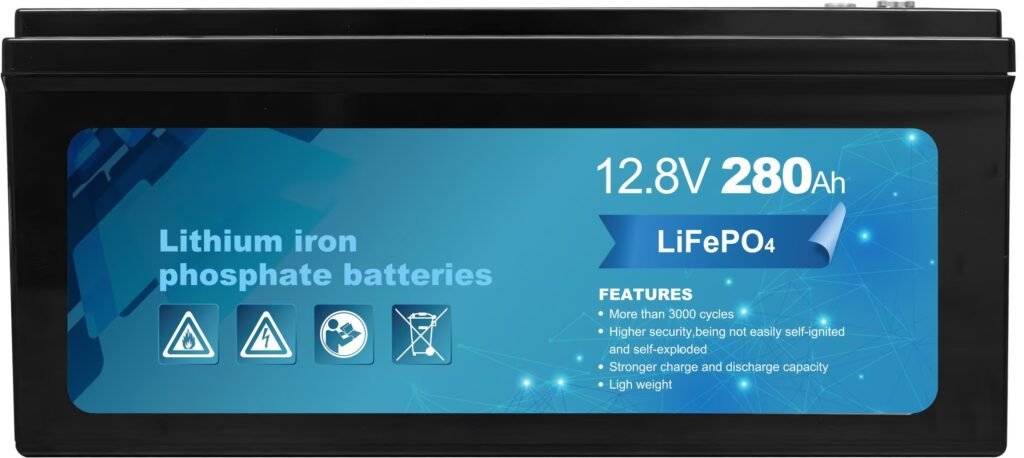

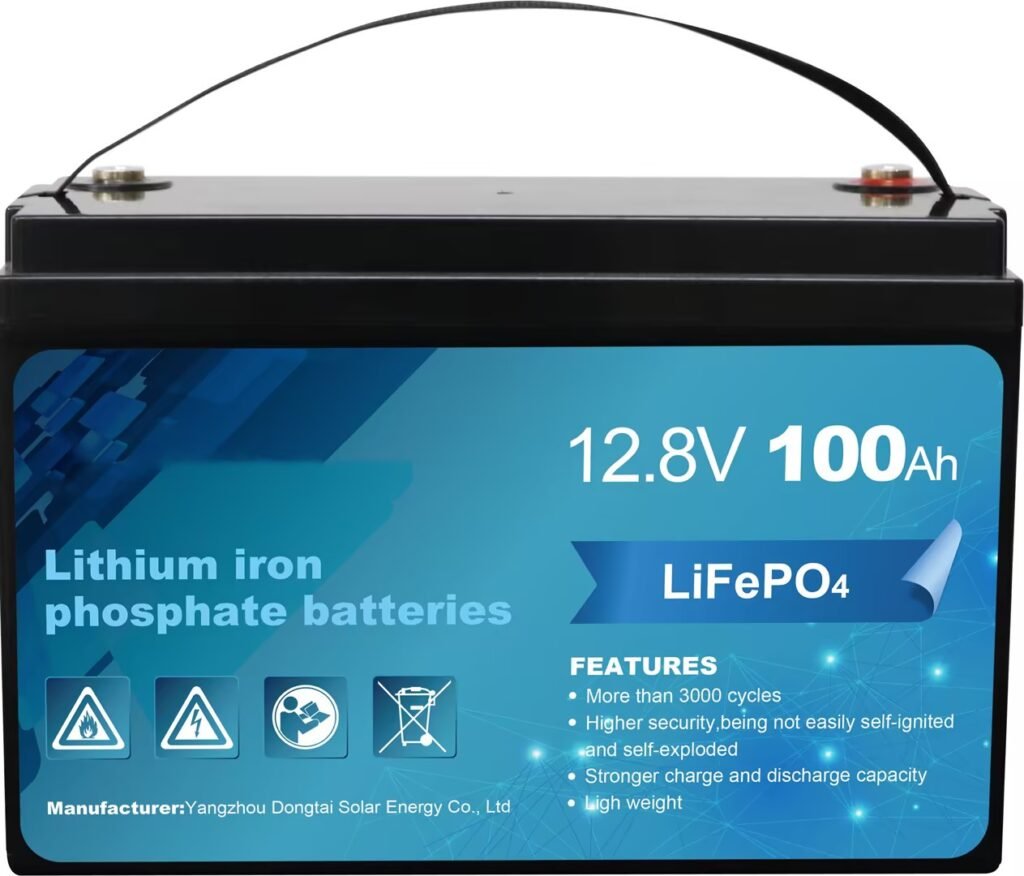

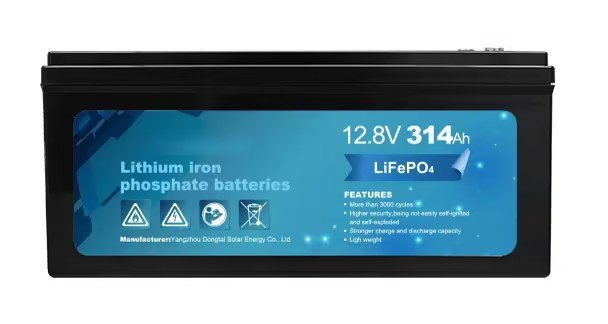

F06 SERIES ABS shell type Lithium iron phosphate battery module

Model: ATF		F06-1280	F06-1920	F06-2560	F06-3584	F06-4020
Cell type		Lithium Iron Phosphate
Nominal voltage (V)		12.8
Nominal capacity (Ah)		100	150	200	280	314
Nominal energy (Wh)		1280	1920	2560	3584	4020
Operating voltage range (V)		10V-14.6V
Charging cut-off voltage (V)		14.6
Discharging cut-off voltage (V)		10
Standard charging current (A)		20	30	40	60
Standard discharge current (A)		50	75	100	100
Maximum continuous charging current (A)		50	75	100	100
Maximum continuous discharge current (A)		100	100	200	200
Cycle life		4000 times (50A charging, 0.5C discharging, 90% DOD, 25±5℃)			5000 times (50A charging, 100A discharging, 90% DOD, 25±5℃)
Dimensions	Length（mm）	330	485	520	520
	Width（mm）	171	154	240	268
	Height（mm）	215	240	220	220
Weight (kg)		11Kg	18Kg	20Kg	25Kg	26Kg
Battery shell		ABS Case
Series and parallel use		Supports up to 4 series connections
Terminals		M8
Allowable humidity range (%RH)		15%~85%
Storage ambient temperature (℃)		-20～45 (recommended 10～35)
Charging ambient temperature (℃)		0～50 (recommended 10～35)
Discharging ambient temperature (℃)		-10～60 (recommended 10～35)
Altitude (m)		<3000
Cooling method		Natural heat dissipation
Operating conditions		Indoor
Protection method		Overvoltage, undervoltage, pressure difference, overtemperature, capacity, overcurrent, short circuit, etc.
Certificate		UN38.3, MSDS, CE
Note: The above data is for reference only and is subject to change without prior notice. For special customization requirements, please contact the equipment manufacturer.
